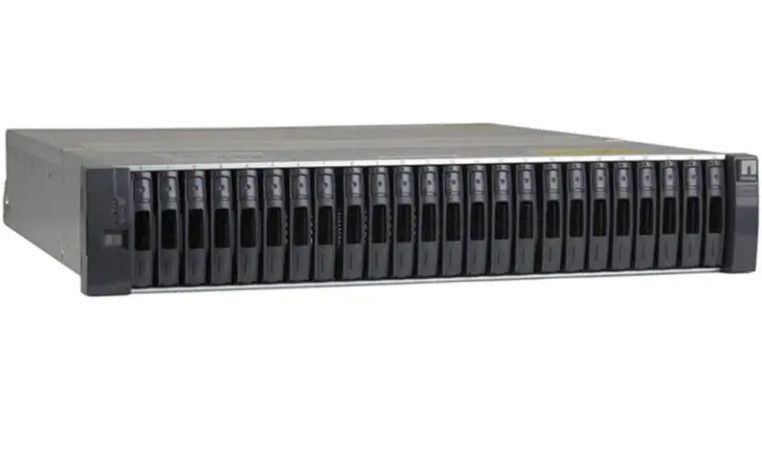

NETAPP DS224C 2U24 Networked Storage
| Brand Name | NETAPP |
|---|---|
| Model Number | DS224C |
| Minimum Order Quantity | 1 |
| Price | USD2500 |
| Delivery Time | 1-3working days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | NETAPP DS224C 2U24 |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
| 品牌 | NETAPP | |
|---|---|---|
| 型号 | DS224C |
Product Description
For NetApp DS224C 2U*24
Networked storage has the advantages of low cost and high capacity expansion. Compared with the previous generation of products, it improves the density, versatility and performance, so as to enhance the support for mainstream applications and capacity intensive applications.
| Specifications | DS212C 9.16.1RC1 |
DS224C 9.16.1RC1 |
| Technical Specifications | ||
| Drive Count | 12 | 24 |
| Physical Characteristics | ||
| Rack Units | 2 | 2 |
| Weight (Empty) | 35.27 lb (16 kg) | 35.27 lb (16 kg) |
| Height | 3.43'' (8.7 cm) | 3.35'' (8.5 cm) |
| Width with Mounting Flanges | 18.9'' (48 cm) | 18.9'' (48 cm) |
| Width without Mounting Flanges | 17.6'' (44.7 cm) | 17.6'' (44.7 cm) |
| Depth with Cable Mgmt | 21.02'' (53.4 cm) | 20.2'' (51.3 cm) |
| Depth without Cable Mgmt | 19.88'' (50.5 cm) | 19.06'' (48.4 cm) |
| Clearance Dimensions | ||
| Front Clearance (Cooling/Maintenance) | 6.02'' (15.3 cm) 24.02'' (61 cm) |
6.02'' (15.3 cm) 24.02'' (61 cm) |
| Rear Clearance (Cooling/Maintenance) | 6.02'' (15.3 cm) 12.99'' (33 cm) |
6.02'' (15.3 cm) 12.99'' (33 cm) |
| Environmental Requirements | ||
| Operating Temperature Range | 50 to 104 deg F 10 to 40 deg C |
50 to 104 deg F 10 to 40 deg C |
| Storage Temperature Range | -40 to 158 deg F -40 to 70 deg C |
-40 to 158 deg F -40 to 70 deg C |
| Transit Temperature Range | -40 to 158 deg F -40 to 70 deg C |
-40 to 158 deg F -40 to 70 deg C |
| Operating Relative Humidity | 20 to 80 % | 20 to 80 % |
| Storage Relative Humidity | 10 to 95 % | 10 to 95 % |
| Transit Relative Humidity | 10 to 95 % | 10 to 95 % |
| Operating Altitude Range | 0 to 9987.6 ft 0 to 3045 m |
0 to 9987.6 ft 0 to 3045 m |
| Storage Altitude Range | -1000.4 to 39989.76 ft -305 to 12192 m |
-1000.4 to 39989.76 ft -305 to 12192 m |
| Transit Altitude Range | -1000.4 to 39989.76 ft -305 to 12192 m |
-1000.4 to 39989.76 ft -305 to 12192 m |
| Acoustic Noise - Sound Power | - | - |
| Acoustic Noise - Sound Pressure | - | - |
| Input Power Voltage | 100 to 120, 200 to 240 | 100 to 120, 200 to 240 |
| Availability & Support | ||
| EOA | ||
| EOS |
